Chapter 14: iptables Log Visualization

Below are all visualizations of iptables log data within Chapter 14:

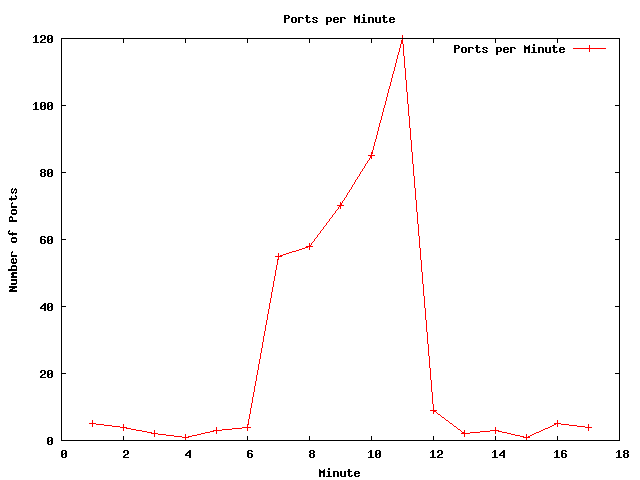

Traffic Spike: Number of packets to ports per minute Traffic Spike: Number of packets to ports per minute

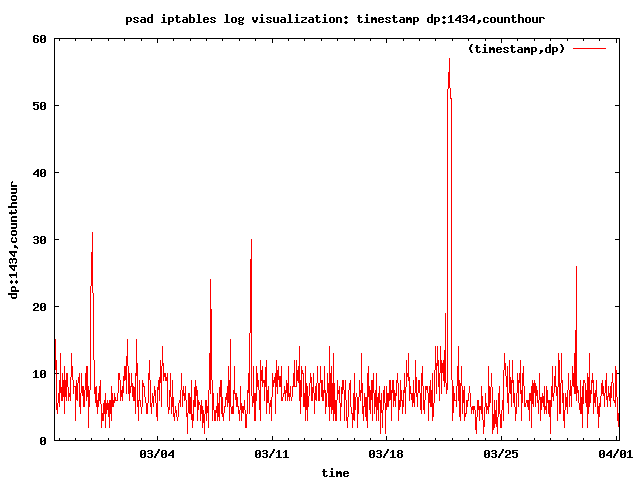

Traffic Spike: Number of SYN packets to ports per hour Traffic Spike: Number of SYN packets to ports per hour

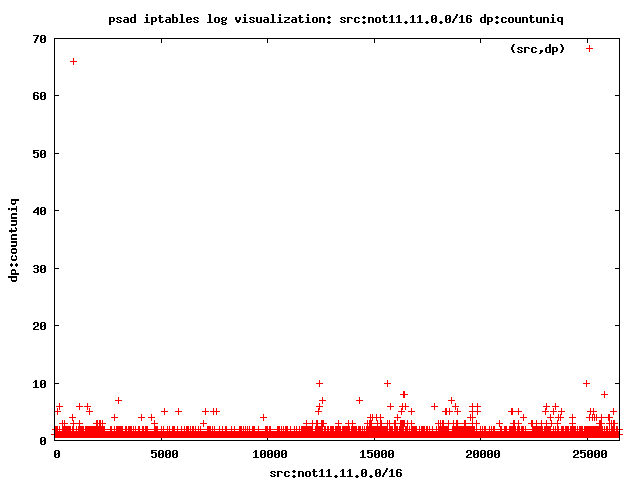

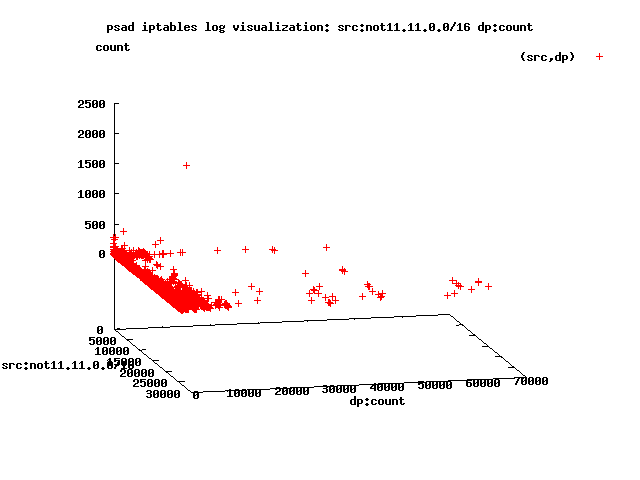

Port Scan: Source IP addresses vs. number of unique ports Port Scan: Source IP addresses vs. number of unique ports

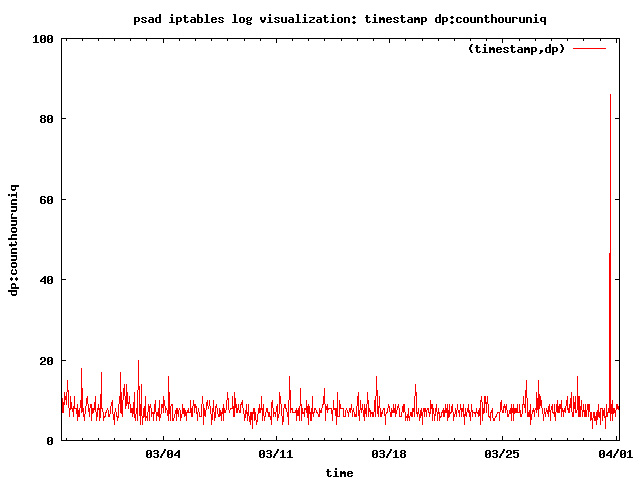

Port Scan: Time vs. unique ports Port Scan: Time vs. unique ports

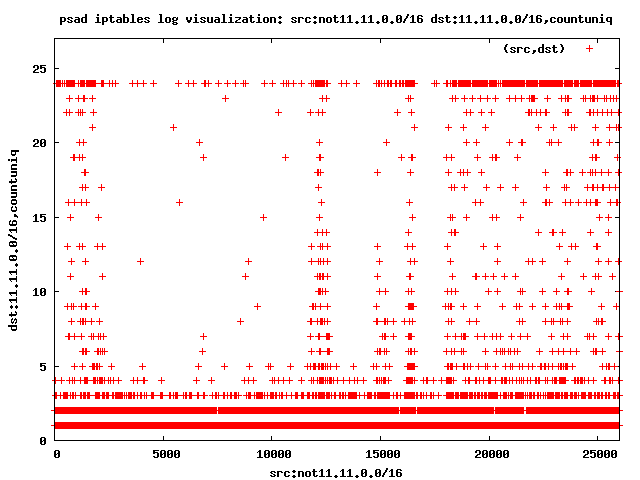

Port Sweep: External sources vs. number of unique local destinations Port Sweep: External sources vs. number of unique local destinations

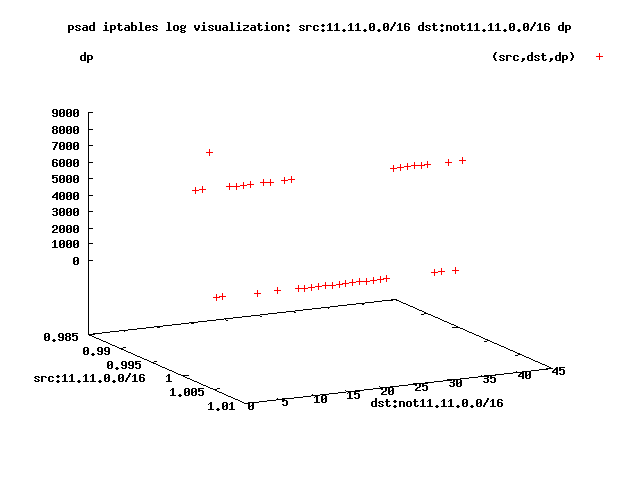

Port Sweep (3D): External source addresses vs. destination ports vs. packet counts Port Sweep (3D): External source addresses vs. destination ports vs. packet counts

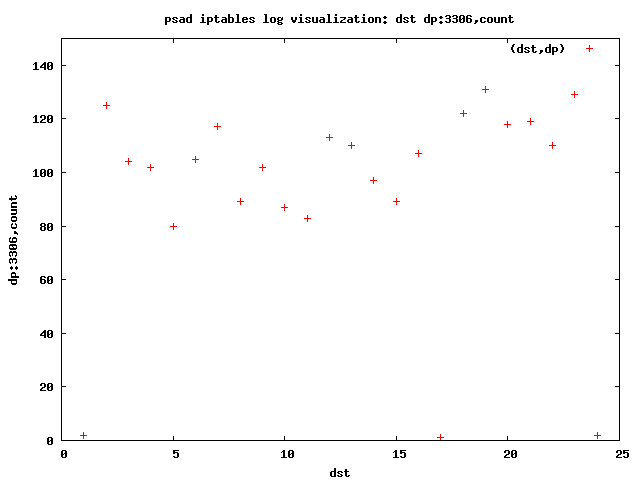

Port Sweep: MySQL 3306 Port Sweep: MySQL 3306

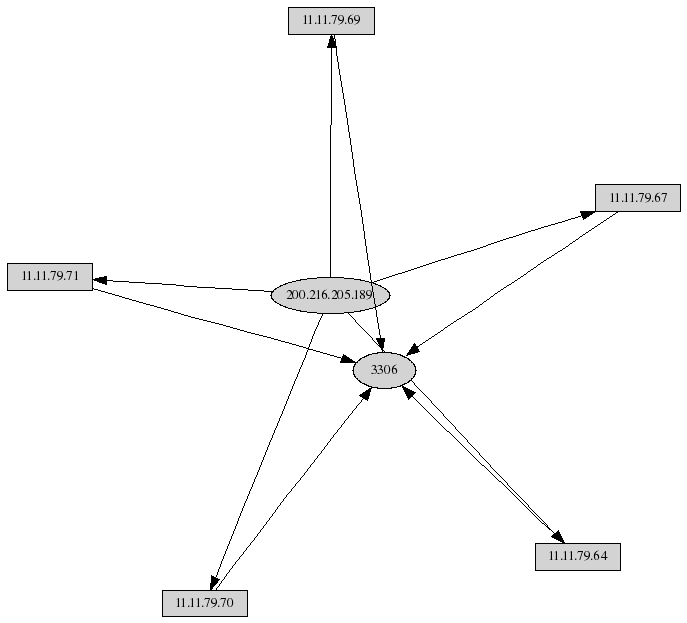

Link graph of MySQL port sweep Link graph of MySQL port sweep

Slammer worm: packet counts by the hour Slammer worm: packet counts by the hour

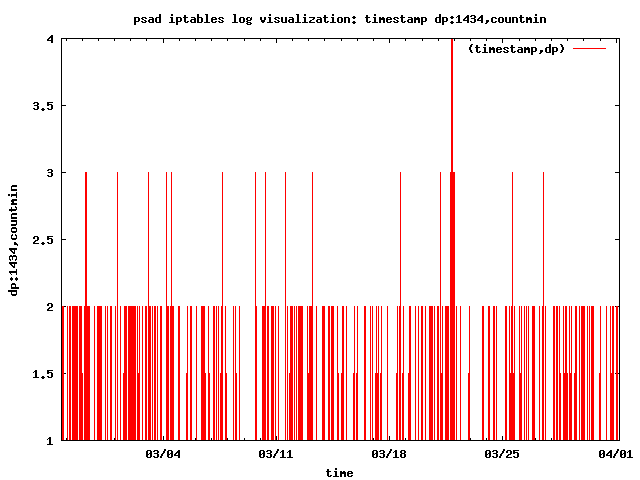

Slammer worm: packet counts by the minute Slammer worm: packet counts by the minute

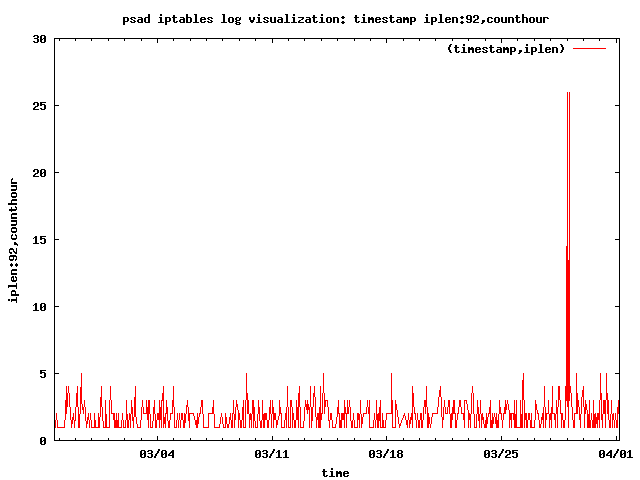

Nachi worm traffic by the hour Nachi worm traffic by the hour

Link graph of Nachi worm 92-byte ICMP packets Link graph of Nachi worm 92-byte ICMP packets

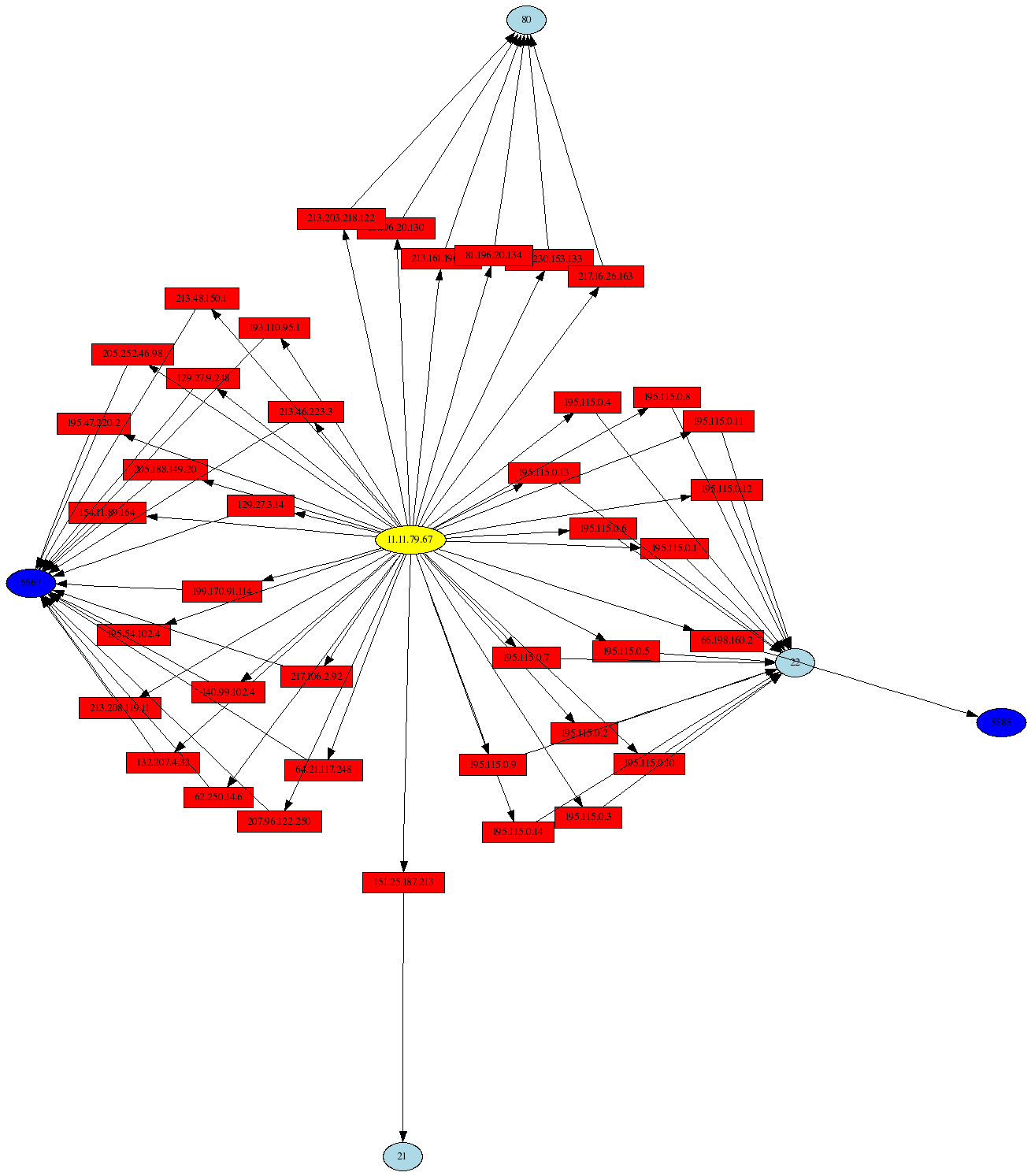

Compromised Honeynet system: Point graph of outbound connections Compromised Honeynet system: Point graph of outbound connections

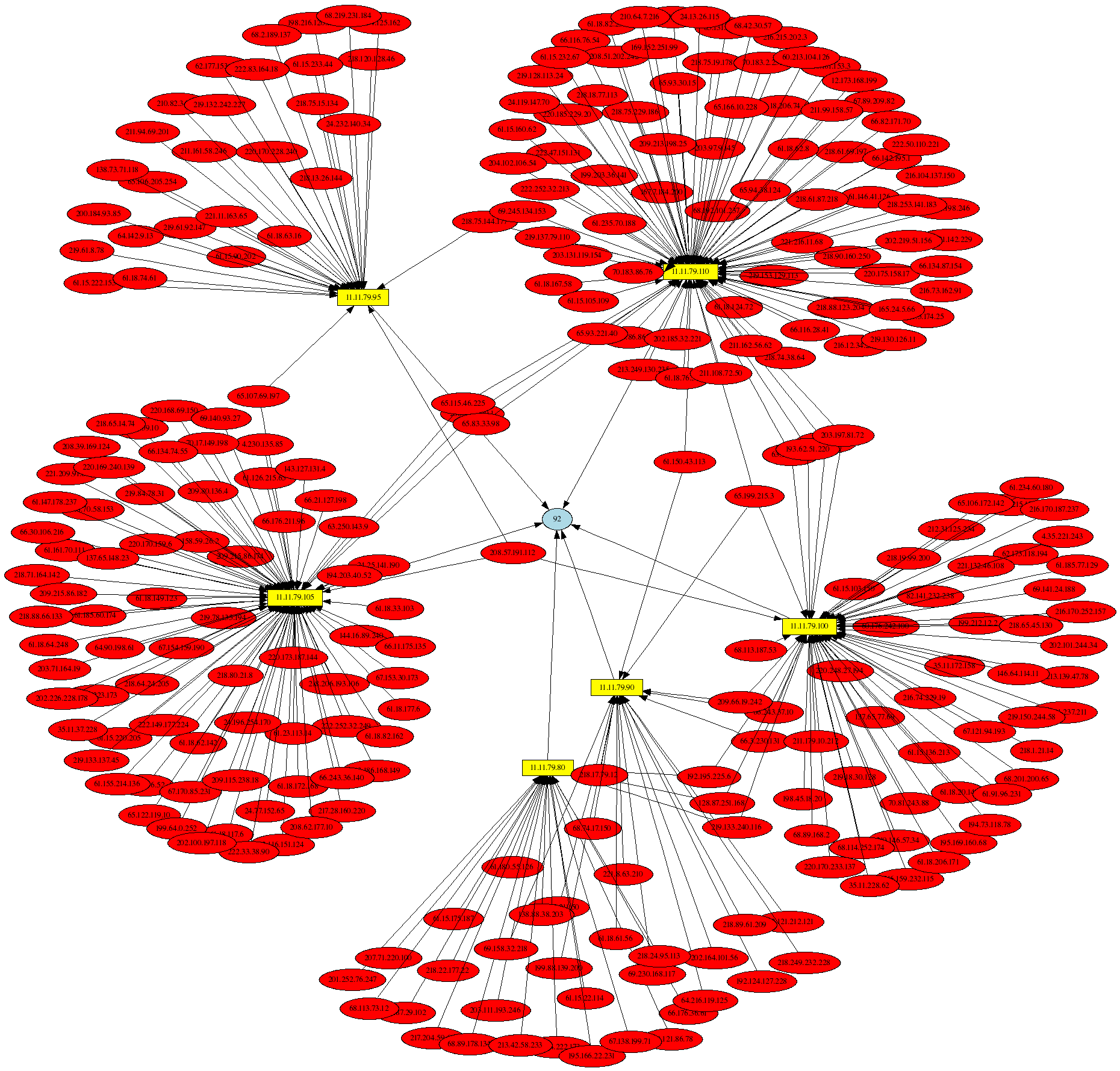

Compromised Honeynet system: Link graph of outbound connections Compromised Honeynet system: Link graph of outbound connections
